Cellufineâ„¢ MAX Ion Exchange Chromatography Media
High flow rate and high binding capacity
Cellufineâ„¢ MAX is the new, high-flow, Cellufineâ„¢ media. Advanced cross-linking technologies have created more robust base beads operable at high flow and pressure. Cellufineâ„¢ MAX ion exchange (IEX) media are made using surface modification techniques that dramatically increase ligand availability, which translates to higher dynamic binding capacities.
Features
Cellufineâ„¢ MAX IEX media are offered in six products (S-r, S-h, Q-r, Q-h, CM, & DEAE), including both anion and cation chemistries. Each offers excellent flow properties, mechanical stability and chemical resistance. These ion exchangers are ideally suited for both laboratory and process scale chromatography of proteins, peptides and other biomolecules. Applications include the purification of antibodies, growth factors, albumin, enzymes, and nucleic acids.
- Largest pore size of all Cellufineâ„¢ chromatography media- provides superior strength and excellent mass transfer
- Based on 90µm (average) highly cross-linked cellulose beads, surface-modified with dextran
- All operable at practical flow velocities (500cm/h) and pressures
- Stable over a range of residence times
- Stable to chemicals, caustic and acidic solutions
Our Products
| Name | Packsize | Order |
|---|
| Name | Packsize | Order | |
|---|---|---|---|
| We couldn't find any records. | |||
| Name | Packsize | Order | |
|---|---|---|---|
| We couldn't find any records. | |||
| Name | Packsize | Order | |
|---|---|---|---|
| We couldn't find any records. | |||
| Name | Packsize | Order | |
|---|---|---|---|
| We couldn't find any records. | |||
| Name | Packsize | Order | |
|---|---|---|---|
| We couldn't find any records. | |||
Properties of Cellufineâ„¢ MAX IEX Media
| MAX-CM | MAX S-r | MAX S-h | MAX DEAE | MAX Q-r | MAX Q-h | ||
| Matrix | Cross-linked cellulose with dextran scaffold | ||||||
| Particle Size (µm) | 40-130 | ||||||
| Ligand | CM | S | S | DEAE | Q | Q | |
| Ion Exchange Capacity (mEq/ml) | 0.09-0.22 | 0.12-0.24 | 0.13-0.25 | 0.14-0.25 | 0.13-0.20 | 0.17-0.24 | |
| 10%DBC (mg/ml) | Lysozyme | 220 | 144 | 191 | - | - | - |
| BSA | - | - | - | 197 | 141 | 225 | |
| Human-γ-globulin | 104 | 131 | 216 | 108 | 74 | 135 | |
| pH Stability | 2-13 | 2-13 | 3-14 | 2-12 | 2-12 | 2-12 | |
| Storage | 20% Ethanol | ||||||
Cellufine resin was developed by JNC and is available from AMSBIO in EU and the US.

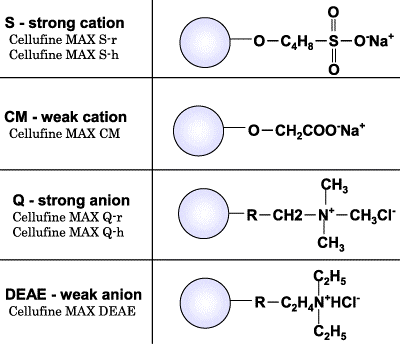

Structure
Subtypes of MAX S and Q
Two subtypes, h and r, are available for Cellufineâ„¢ MAX S and Q. The differences between the subtypes is due to the design of the media, with subtype h designed for higher binding capacity than subtype r, by optimizing the ligand content and dextran scaffold.
Subtype h: highest absorption capacity
Subtype r: high recovery, high resolution and robustness
Pressure-flow Properties
Cellufineâ„¢ MAX IEX media enable high-flow operation, which is essential for the efficient purification of biopharmaceuticals. The figures below show pressure-flow velocity curves of Cellufineâ„¢ MAX IEX media in a 30 cm column with a 20 cm bed height.

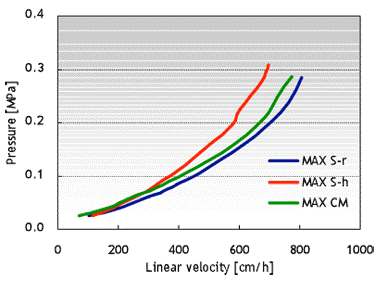

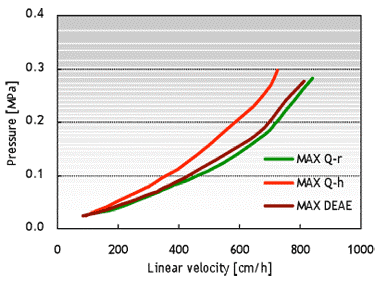

Fig. 3 Pressure-flow velocity curves for Cellufine™ MAX IEX media. Column: 30 cm I.D. x 20 cm L. Mobile phase: Pure Water at 24°C
Dynamic Binding Capacities
Efficient mass-transfer characteristics of Cellufineâ„¢ MAX IEX media translate to superior dynamic binding capacities (DBC). Figures 4-6 show DBC of model proteins at different residence times for Cellufineâ„¢ MAX IEX media. All Cellufineâ„¢ MAX IEX media are stable over a range of residence times.
Fig. 7 shows that Cellufineâ„¢ MAX S exhibits superior dynamic binding performance across a range of protein characteristics compared to competitive media.
These unique characteristics of Cellufineâ„¢ MAX IEX media make it suitable for use in upstream as well as downstream steps in biopharmaceuticals purification.
Cellufineâ„¢ MAX Weak Ion Exchange Media
Cellufineâ„¢ MAX Anion Exchange Media
Cellufineâ„¢ MAX Cation Exchange Media
Model Protein Separation
Cellufineâ„¢ MAX IEX media are optimized for high adsorption and high resolution. Model protein separation with MAX S-h and MAX CM (strong cation vs. weak cation) and MAX Q-h and MAX DEAE (strong anion vs. weak anion) are shown below.
Cellufine™ is the trademark of JNC Corporation, Tokyo, Japan
